一、型號解析

45V50A-1C22R 為單聯定量子母葉片泵（45V 系列、50 排量、標準設計）。

• 45V：系列代號，中高壓?jiǎn)温?lián)葉片泵。
• 50：幾何排量 50 mL/r。
• A：油口布置（標準法蘭，側進側出）。
• 1：軸伸規格（1 型，平鍵軸）。
• C：出油口位置（C 方位，標準右側）。
• 22：設計版本（22 系列，標準壓力 / 密封）。
• R：旋轉方向（右旋，從軸端看順時針）。

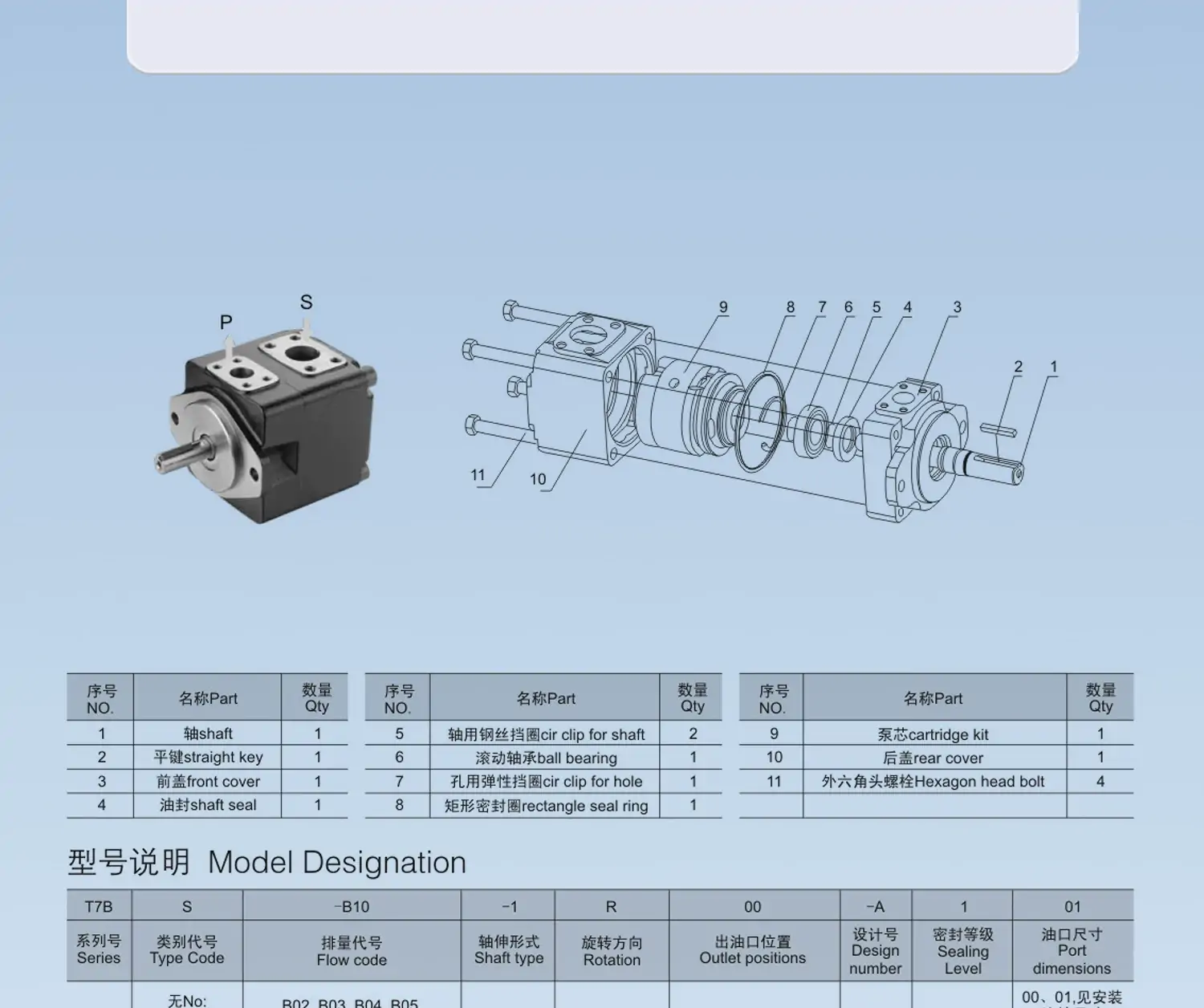

二、結構組成

• 泵體：高強度鑄鐵，整體式結構，剛性好、抗振、散熱優。
• 定子 / 轉子 / 子母葉片：定子：內曲線高耐磨合金，雙作用壓力平衡設計。轉子：開 12 道葉片槽，子母葉片（母葉 + 子葉）結構。葉片：12 組子母葉片，底部通壓力油，液壓補償貼合定子，磨損低、壽命長。
• 配流盤：前后浮動側板，自動補償軸向間隙，維持高容積效率。
• 泵軸：加粗平鍵軸，徑向力平衡，軸承負載低。
• 密封：標準丁腈橡膠（-20℃~+80℃），可選氟橡膠（高溫）。
• 模塊化泵芯：定子 / 轉子 / 葉片 / 配流盤總成，可現場更換，無需拆泵體。

三、工作原理

1. 吸油：轉子旋轉，葉片離心甩出，油腔容積擴大，油液經吸油口吸入。
2. 壓油：轉子繼續轉動，油腔容積縮小，油液加壓后從排油口輸出。
3. 雙作用平衡：轉子每轉一周，完成兩次吸油 / 壓油，徑向力相互抵消，運行平穩、噪聲低。
4. 子母葉片補償：葉片底部通高壓油，子葉頂出母葉，高壓下貼合更緊、內泄更小、效率更高。

四、核心參數（標準工況）

• 幾何排量：50 mL/r
• 額定壓力：210 bar（21 MPa）
• 最高峰值壓力：240 bar（24 MPa）
• 轉速范圍：600–2000 rpm（推薦 1200–1800 rpm）
• 容積效率：≥92%（150 bar、1500 rpm）
• 噪聲：≤68 dB（A）（150 bar、1500 rpm）
• 介質粘度：10–2000 cSt（推薦 32–68 cSt 抗磨液壓油）
• 工作溫度：?20℃～+80℃（氟橡膠密封可達 + 120℃）
• 重量：≈23 kg

五、性能優勢

1. 高壓高效：210 bar 額定壓力，子母葉片 + 浮動側板，容積效率高、內泄小、發熱低。
2. 低噪平穩：12 葉片設計 + 雙作用壓力平衡，流量脈動小、噪聲低，適合精密設備。
3. 耐久可靠：液壓平衡 + 子母葉片補償，葉片對定子壓力小、磨損低、壽命長。
4. 結構緊湊：?jiǎn)温?lián)集成，體積小、重量輕，安裝空間小。
5. 維護簡便：模塊化泵芯可現場更換，無需專業工具，停機時間短。

六、典型應用

• 注塑機、壓鑄機、液壓成型機（中高壓、穩定流量回路）。
• 機床、冶金設備、工程機械（中高壓、低噪、高可靠系統）。
• 工業自動化生產線（單執行器或多執行器同步控制）。

七、使用注意

1. 油液清潔：建議10 μm過濾，避免顆粒磨損定子與葉片。
2. 轉速控制：避免長期低于 600 rpm 或高于 2000 rpm，防止效率下降或過熱。
3. 壓力匹配：長期工作壓力建議≤180 bar，延長泵芯壽命。
4. 安裝同軸度：聯軸器同軸度≤0.1 mm，避免振動與異響。
